Q68ADI | Mitsubishi Electric | Q Series A/D Input Module

Q68ADI | Mitsubishi Electric | Q Series A/D Input Module

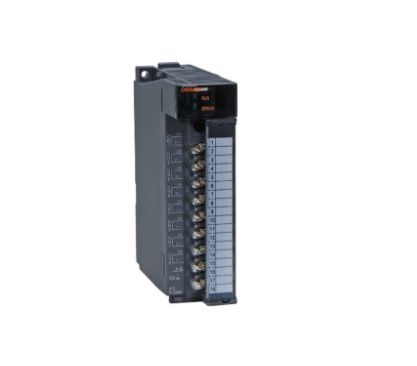

• Manufacturer : Mitsubishi Electric

• Product No. : Q68ADI

• Product type :Q Series A/D Input Module

• Input points : 8

• Analog input : - mA/+20mA

• Resolution : 16 bits binary

• I/O ponits : 16

• Connection terminal : ALll modules are fitted with a terminal block with 18 screw terminal

• External power consumption (5 VDC) : 640mA

• Dimensions (LxWxH) : 9cm x 2.74cm x 9.8cm

• Shipping Weight : 2 Kg

The ideal servo family for motion control.

Fast response, high speed, and high accuracy.

• 6 different designs provide a complete range of servo motors to meet the power, speed and performance required per each application.

• Peak torque 300% of nominal during 3 seconds

• Automatic motor recognition by servo drive

• IP67 and shaft oil seal available • High resolution encoders • Absolute multiturn encoder solution • Compact design and robust construction Ratings

• 230 VAC from 30 W to 1.5k W (rated torque from 0.09 to 4.77 Nm) • 400 VAC from 300 W to 55 kW (rated torque from 0.95 Nm to 350 Nm)

Note: The symbols ABC... show the recommended sequence to select the servo motor and cables Servo motor

A Select motor from families SGMAH, SGMPH, SGMGH, SGMUH, SGMSH, SGMBH using motor tables in next pages.

Servo drive

Note: Choosing Sigma-II drive or XtraDrive affects to the encoder cable needed. B Refer to Sigma-II servo drive or XtraDrive chapter for detailed drive specifications and selection of drive accessories.
