MFE190-04UD-09A0-2 ABB Servo Drive with Integrated Safety Multi-Ethernet

MFE190-04UD-09A0-2 ABB Servo Drive with Integrated Safety Multi-Ethernet

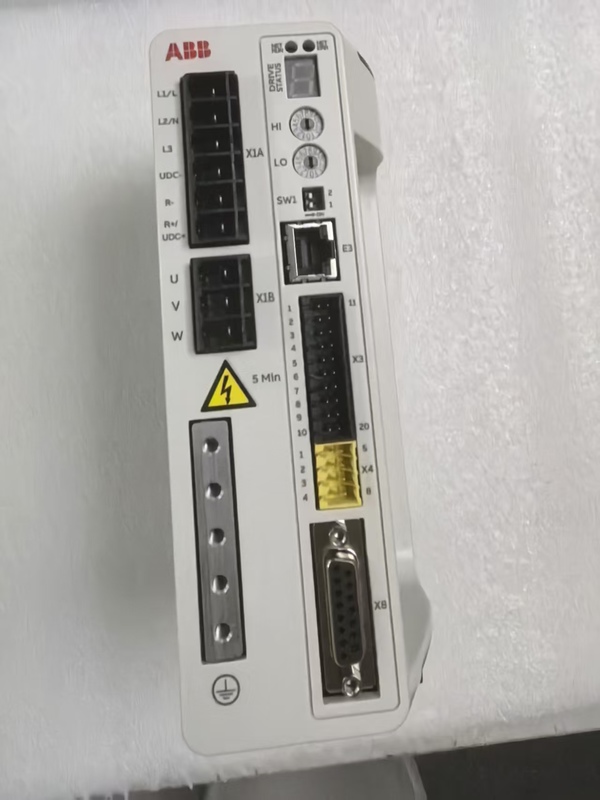

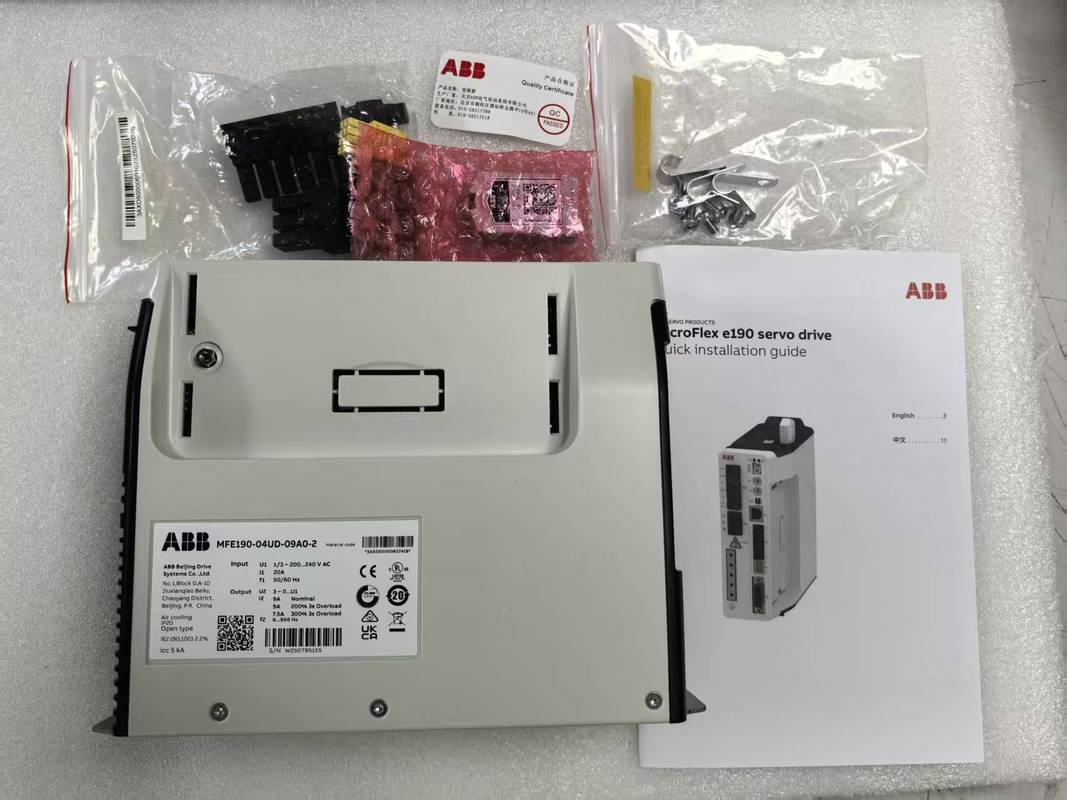

The MFE190-04UD-09A0-2 in the ABB MicroFlex e190 series servo drive is a compact and high-performance servo drive. The following is a summary of its main product information:

MFE190-04UD-09A0-2 characteristic category description:

• Model: MFE190-04UD-09A0-2
• Brand: ABB
• Rated current: 9 A
• Input power supply: Main circuit: Single phase/Three phase AC 230V; Control circuit: 24 VDC (communication and configuration can also be carried out when the main circuit is not powered on)
• Key features: Supports multiple Ethernet protocols (such as PROFINET, supports dual port/daisy chain connections); Built in Mint programming language; Support pulse/analog control
• Safety features: Safety torque cutoff (STO), compliant with IEC61800-5-2, SIL3, PLe level
• I/O quantity: 4 digital inputs, 3 digital outputs, 1 analog input, 1 analog output
• Firmware requirement: MicroFlex e190 Build 5903 or higher
• Physical characteristics: Protection level IP20 (to be installed inside the cabinet)

Options and extensions:
MFE190-04UD-09A0-2 supports multiple optional accessories to meet specific application requirements,

such as:

• Storage unit: such as MFE190-MU-OCU, which can be used for program storage and expansion I/O (providing additional 6 DI, 4 DO, 1 AI, and RS485/RS422 serial ports).
• Encoder adapter: such as rotary transformer adapter (OPT-MF-201).
• EMC filter: such as back mounted filter.

Communication and Protocol:
This driver supports multiple real-time Ethernet communication protocols and can be selected through software, including:

• PROFINET IO (supports daisy chain connections)
• EtherCAT
• EtherNet/IP (limited to E3 configuration port)
• Powerlink (its dual port design facilitates the implementation of daisy chain topology, saving switch ports and wiring.)

Storage and Programming:
The drive supports configuration backup, recovery, or replication through pluggable storage units (such as N8020) for easy maintenance and mass production. Its built-in Mint programming language allows users to directly implement complex motion control logic (such as electronic gears, cam curves, flying shears, etc.) within the driver, reducing reliance on upper level controllers.

security features
This driver integrates a safety torque cutoff (STO) function that complies with SIL3/PLE safety levels, meeting high-level safety requirements without the need for additional safety modules.

Product update highlights (compared to old versions):
According to the update released by ABB, this model and its series include some optimizations:

• Control power supply: Supports 24VDC control circuit power supply, allowing communication and configuration even if the main circuit is not powered on.
• Heat dissipation and noise: Adopting a new fan, improved air duct and heat sink design, the heat dissipation efficiency is improved and the noise is reduced.
• Stability enhancement: including better electromagnetic compatibility (EMC), more stable digital input, and enhanced reliability in vibration environments by fixing the storage card with screws.
• 1.6A rated current and 110VAC main circuit power supply are no longer supported.

MFE190-04UD-09A0-2 is suitable for various industrial automation scenarios that require high-precision motion control:

• Robots/Pick and Place
• packaging machinery
• printing machinery
• textile machinery
• Material conveying
• Fixed length cutting, flying cutting, rotating cutting
• Electronic gearbox, multi axis synchronous motion
